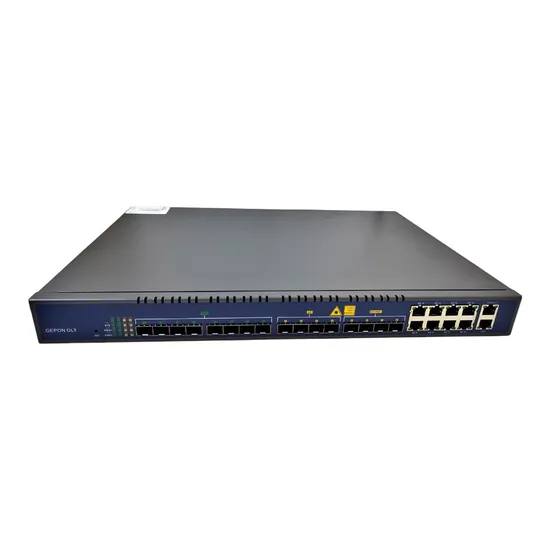

V1600D8 EPON 8 PON OLT

Acompanha 08 módulos EPON OLT PX20++

Uplink interface: 8*10/100/1000M auto-negotiation
Connector Type: 1000BASE-PX20++
SFP (independent): 8*SFP Or 4*SFP & 4*SFP+ slots
EPON port speed: Symmetrical 1.25Gbps Max splitting ratio: 1:64
Distance: 20KM/40KM
Consumo de energia: 45W
Temperatura de trabalho: -10 ~ + 55º C
Dimensão: 442 milímetros * 320 milímetros * 43,6 milímetros
PESO: 4.5 KG

Especificações técnicas
Chassis Rack: 1U 19 inch standard box

1000M Uplink Port
QTY: 16
Copper: 8*10/100/1000M auto-negotiation
SFP (independent): 8*SFP Or 4*SFP and 4*SFP+ slots
(SFP+ is 10GE)

EPON Port
QTY: 8
Physical Interface: SFP Slots
Connector Type: 1000BASE- PX20++
Max splitting ratio: 1:64

Management Ports
1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification
Transmission Distance: 20KM
EPON port speed: Symmetrical 1.25Gbps
Wavelength: TX 1490nm, RX 1310nm
Connector: SC/PC
Fiber Type: 9/125µm SMF
TX Power: +2~+7dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -6dBm

Function
Management Mode
SNMP, Telnet and CLI
Management Function
Fan Group Detecting
Port Status monitoring and configuration management;
Layer2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc
EPON management function: DBA,ONU authorization, ACL, QOS, etc
Online ONU configuration and management
User management
Alarm management.

Layer2 Switch
Support port VLAN and protocol VLAN
Support 4096 VLANs
Support VLAN tag/Un-tag ,VLAN transparent transmission, QinQ
Support IEEE802.3d trunk
Support RSTP
QOS based on port, VID, TOS and MAC address
IGMP Snooping
IEEE802.x flow control
Port stability statistic and monitoring.

Layer 3 Route
1024 Host Routes
512 Subnet Routes
256 IP Multicast Groups

EPON Function
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah standard;
Up to 20KM transmission Distance;
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
Support Dynamic Bandwidth Allocation (DBA);
Support ONU auto-discovery/link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration;
Different user and different service could provide different QoS by means of
different LLID channels;
Support power-off alarm function, easy for link problem detection;
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Specialized design for system breakdown prevention to maintain stable system;
Support dynamic distance calculation on EMS online;
Support RSTP, IGMP Proxy.

100 - 240V
50-60 HZ
